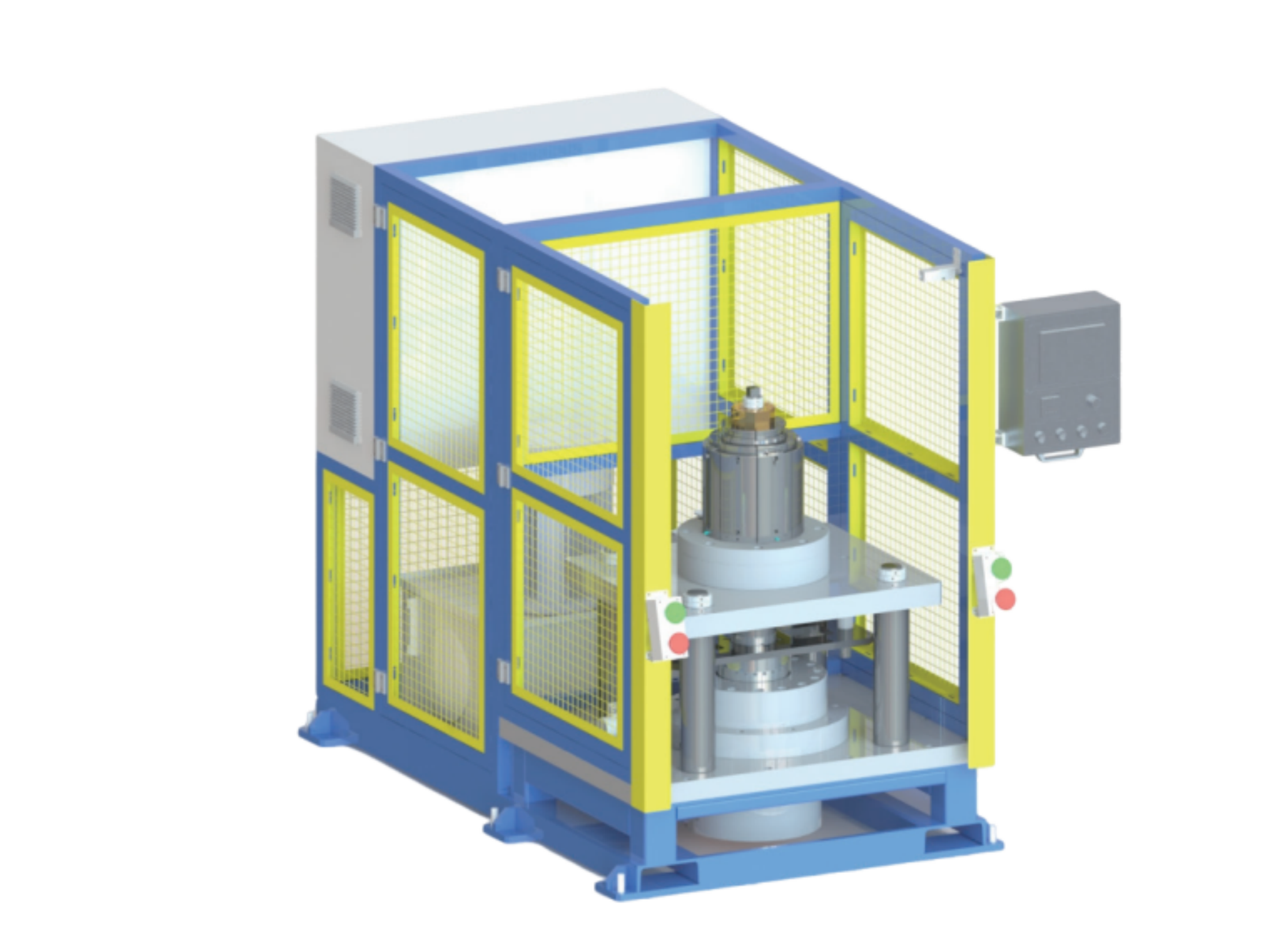

Rounding Machine
Expansion：160-400mm*
Maximum deformation length：250 mm*
Maximum wall thickness：4 mm*
Axial stroke：100mm
Hydraulic cylinder：Ø320-100ST
Forming force of hydraulic cylinder：140T
Expansion stroke：in Ø max. 10 mm
Average cycle time：~5s
*Depends on die
Hydraulic system
Fuel Tank Capacity：200L
Flow Rate：45L/min
Pressure：300 bar
Motor：15kW – 28.8A
Valve：24 V Bosch Rexroth
Electrical installations
Connection Data 400 V / 50 Hz / 3L N PE
Siemens PLC
Siemens 9-inch color touchscreen
RJ45 interface for program transfer
Position sensor
Main switch “ON/OFF”
Lighting button “Control Start”
Button “Control Stop”
Indicator “Interrupt”
Button “Confirm Interrupt”
Emergency stop
Motor protection switch
Control cabinet electrical connections: No cables or plugs
Equipment Features
HW-Flex Universal Housing Electrical assembly with ample clearance space Hydraulic unit mounted on frame IO Deformation Unit Quick-change interface for mandrel and mold Dimensions: Length=2150mm; Width=1500mm; Height=1800mm Sound Pressure Level 78 dB Enclosure Color: RAL 7035 Light Gray Control Unit Color: RAL 7035 Light Gray IO Deformation Unit Color: Polished Black Gross Weight: 0.8T
