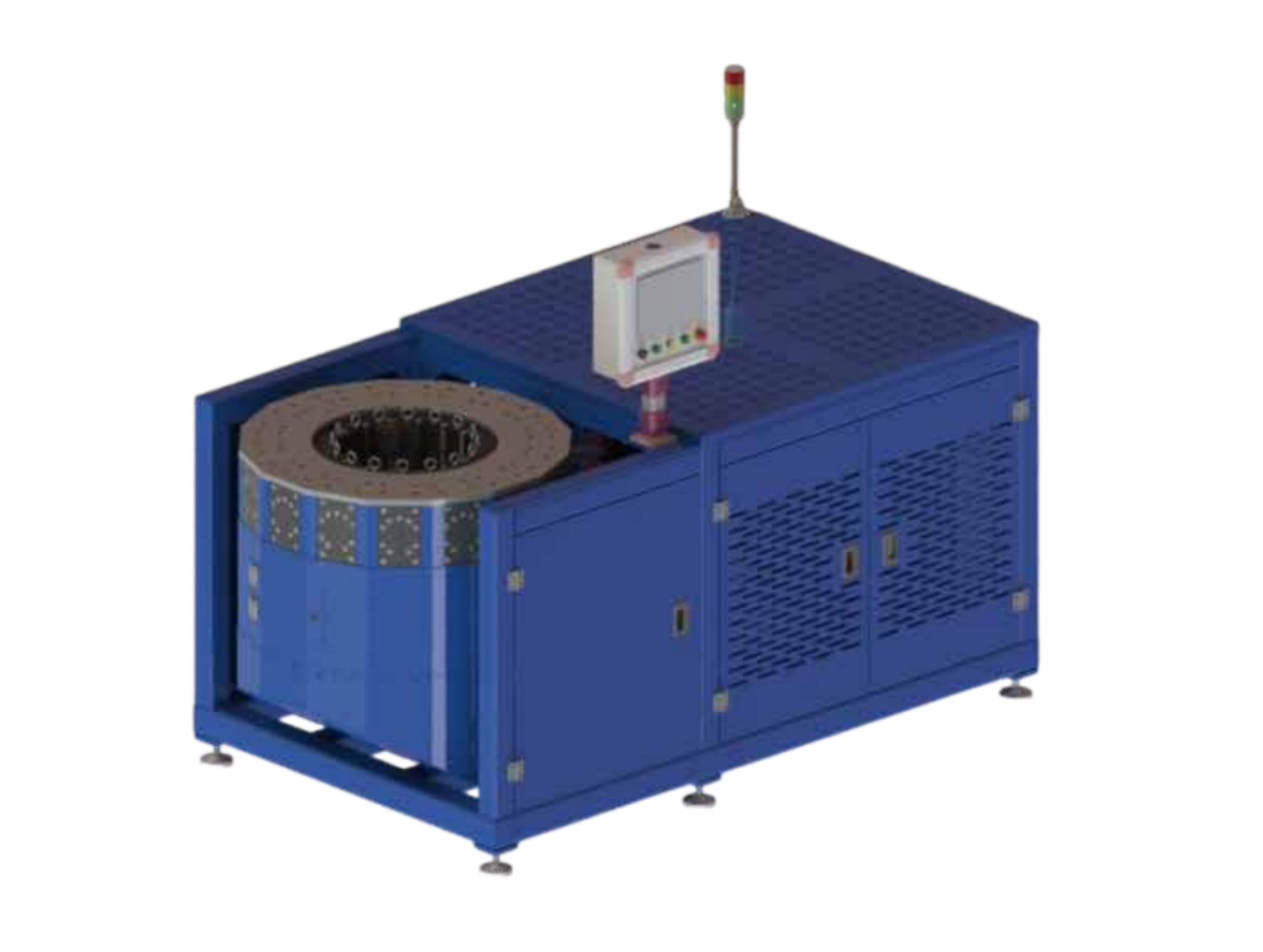

Tube Diameter Reducing Machine
Pipe Diameter：150–380 mm*
Maximum Deformation Length：200 mm*
Maximum Wall Thickness：4 mm*
Lifting Stroke：400 mm
Lifting Servo Motor：400 W
Hydraulic Cylinder：Ø90–30ST (16 pieces)
Hydraulic Cylinder Forming Force：13T
Reducing Stroke：in Ø max. 60 mm
Average Cycle Time：~5s
*Depends on die
Electrical installations
Connection Data 400 V / 50 Hz / 3L N PE Siemens PLC Siemens 9-inch color touchscreen RJ45 interface for program transfer Position sensor Main switch “ON/OFF” Illumination button “Control Start” Button “Control Stop” Indicator “Interrupt” Button “Confirm Interrupt” Emergency stop Motor protection switch Control cabinet electrical connections: No cables or plugs
