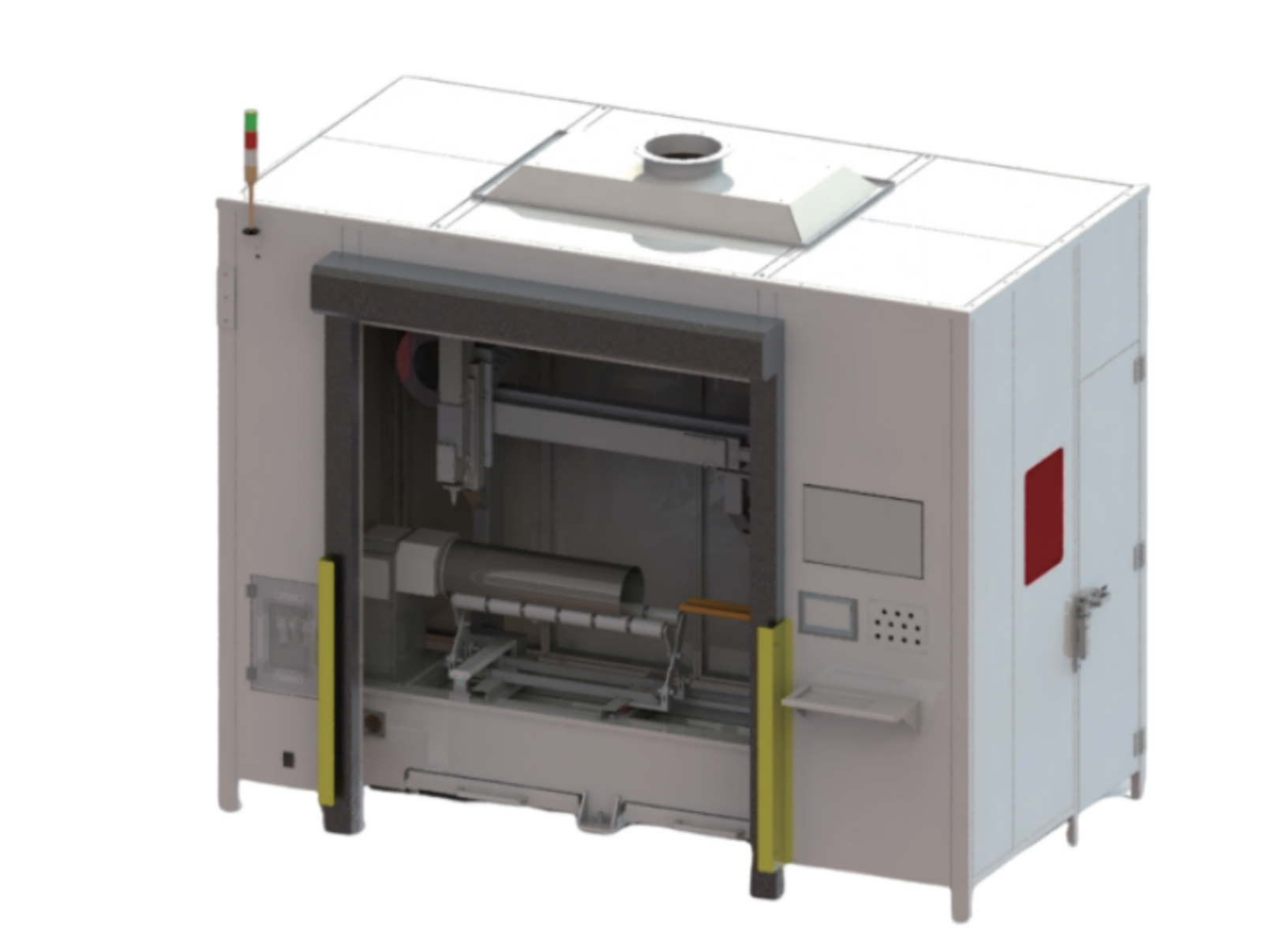

3D Laser Cutting Machine

Electrical installations

Connection Data 400 V / 50 Hz / 3L N PE
Siemens PLC
Siemens 9-inch color touchscreen
RJ45 interface for program transfer
Position sensor
Main switch “ON/OFF”
Lighting button “Control Start”
Button “Control Stop”
Indicator “Interrupt”
Button “Confirm Interrupt”
Emergency stop
Motor protection switch
Control cabinet electrical connections: No cables or plugs

Equipment Features

HW-Flex Universal Enclosure
Electrical installation with sufficient clearance space
Vacuum system
Horizontal workstation
Dimensions: Length = 3400mm; Width = 2700mm; Height = 2900mm
Enclosure Color: RAL 7035 Light Gray
Control Unit Color: RAL 7035 Light Gray
IO Modular Unit Color: Polished Black
Gross Weight: 2.0T

Control

Store 100 programs (digital)
Setup, manual and automatic modes
Interrupt signal light
Login
Workpiece counter
