May11 480 -Tube End Forming Machine
Pipe Diameter: 20-100 mm
Maximum Deformation Length: 100 mm
Maximum Pipe Wall Thickness: 4 mm
Inner Mold Cylinder: Ø180-200ST, 1 pc
Inner Mold Forming Force: 76T
Inner Mold Deformation Stroke: Ø max. 48 mm
Outer Mold Cylinder: Ø70-30ST, 16 pcs
Outer Mold Deformation Stroke: Ø max. 60 mm

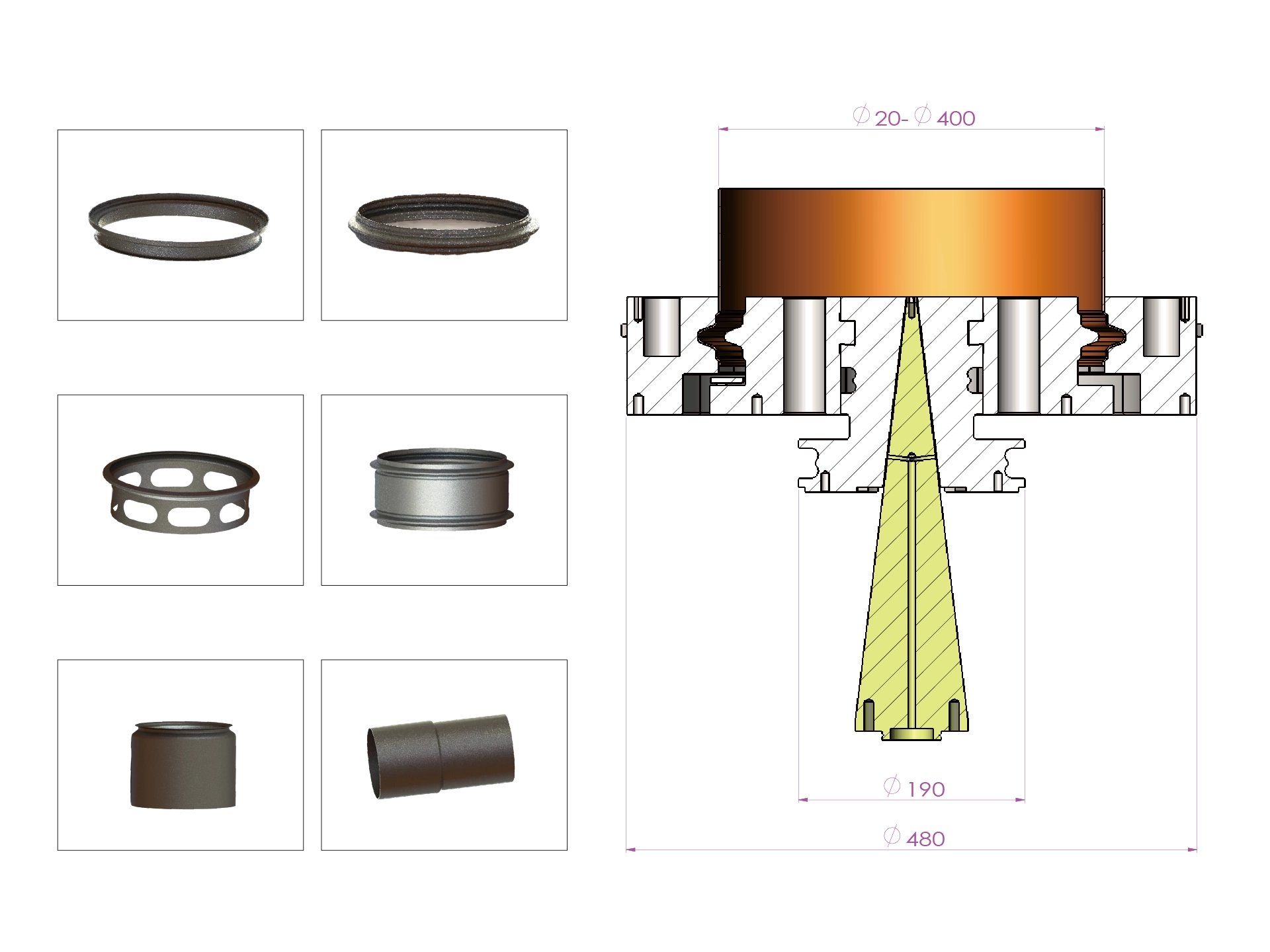

Mold Interface: Inner Ø120, Outer Ø480
Average Cycle Time: Approx. 40 s
Machine Dimensions: 2820 × 1400 × 2080 mm
Product Description
The May11 480 Tube End Forming Machine is designed for industrial tube and pipe end forming applications that require stable forming force, accurate pipe end expansion and reliable production repeatability.
With a pipe diameter range of 20-100 mm, maximum deformation length of 100 mm and maximum wall thickness of 4 mm, this model is suitable for pipe end expansion, pipe end alignment, tube and ring manufacturing, and connection preparation after bending or welding operations.
Its heavy-duty hydraulic structure, vertical workstation, quick-change mold interfaces and customizable control system help manufacturers improve forming efficiency while reducing manual adjustment time.

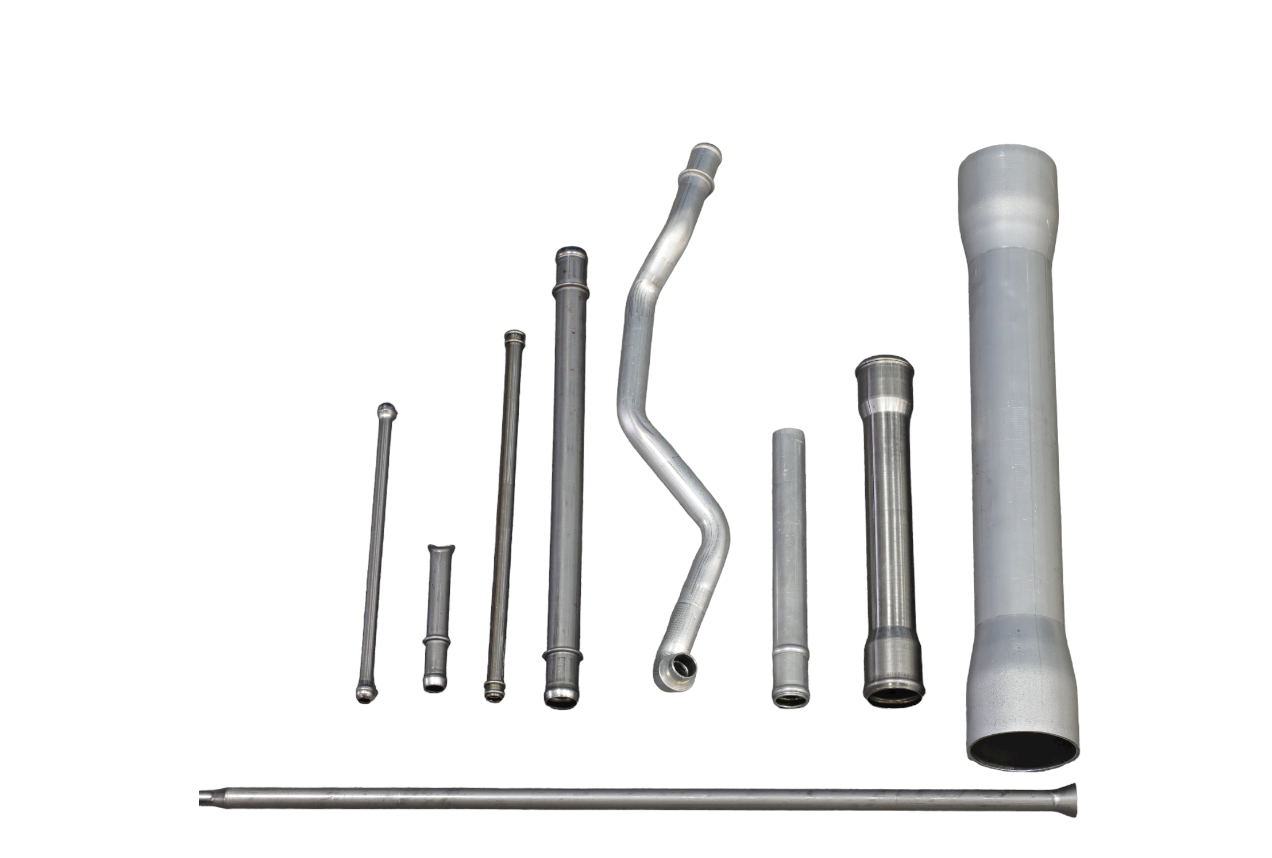

Tube End Forming Applications
– Pipe end expansion after bending
– Pipe end expansion after welding
– Pipe end alignment and calibration
– Tube and ring manufacturing
– Tube connection preparation
– Industrial pipe fitting production
– Automotive tube and exhaust components
– HVAC and refrigeration tube assemblies
– Stainless steel, carbon steel, aluminum and copper tube processing
Equipment Features Section：
-Heavy-duty HW-Flex universal housing
-Hydraulic unit mounted on the machine frame
-IO deformation unit for stable forming performance
-Vertical workstation for efficient operation
-Quick-change flange for base mold and extension mandrel
-Quick-change interface for external cap mold
-Spacious electrical assembly layout for easier maintenance
-Custom machine colors available according to customer requirements
-Documentation available in the required language
Control System
The May11 480 can be equipped with a digital control system for efficient setup, manual operation and automatic production. The control interface can be customized according to customer requirements, including touchscreen brand, screen size, program storage capacity and operating language.
Control functions can include:
– Manual and automatic operation modes
– Digital program storage
– Workpiece counter
– Offset adjustment
– Interrupt signal light
– Operator login function
– Customized touchscreen interface
– Required language documentation
Tube End Forming Machine FAQ |
Q1: What is the May11 480 Tube End Forming Machine used for? |
| A: The May11 480 is used for pipe end expansion, pipe end alignment, tube and ring manufacturing, and connection preparation after bending or welding operations. |
Q2: What pipe diameter can the May11 480 process? |
| A: The May11 480 supports pipe diameters from 20 mm to 100 mm. |
Q3: What is the maximum wall thickness? |
| A: The maximum pipe wall thickness is 4 mm, depending on material, mold design and forming requirements. |
Q4: Can the machine be customized? |
| A: Yes. May11 can customize machine color, touchscreen brand, screen size, control language, documentation language and tooling configuration according to customer requirements. |
Q5: What information should I provide before requesting a quote? |
| A: Please provide tube material, outside diameter, wall thickness, required end shape, deformation length, production volume and drawings if available. |
